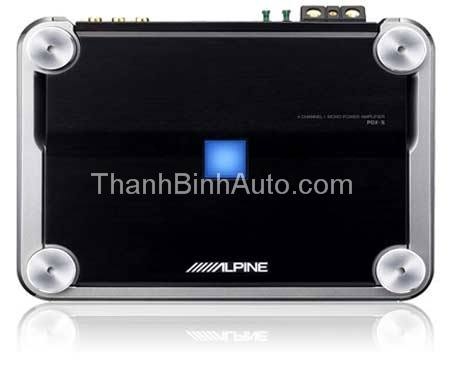

Ampilifier ALPINE PDX-5
Alpine PDX-5 - Ampilifier 5/3 kênh công suất tối đa 1.200W
Thông tin sản phẩm
Giá
11,285,000 VNĐ
Hãng sản xuất
Alpine Số lượt xem:1221
Alpine PDX-5 - Ampilifier 5/3 kênh công suất tối đa 1.200W
Features
General
Amplifier Type: Class-D
Channel Design: 4 Channel + 1 Channel (Mono)
Thermal Control: Thermal Management Control
Power Supply: DC-DC PWM Power Supply
Power Supply Design: Direct FET Power
Board Circuitry: STAR Circuitry
Protection: Over-Current, Over-Voltage and Thermal Protection
Power Indicator: Top/Side Mounted LED Power/Status Indicator
RCA Input: Gold Plated RCA Input Connectors
Speaker-Level Inputs: No
Crossover: Adjustable Low-Pass/High-Pass
Connector Plating: Gold Plated Input, Output, Power and Speaker Terminals
Pre-Amp Stage: Discrete
Board Design: Dual Sided Glass Epoxy PC Board
Gain Control: Continuously Adjustable Gain Control Install
Terminal Layout: One-Side
Screw Mount / Wire Cover: Insert Screw Terminals and Plug-in Speaker Terminals
Install: Stacking Install
Specifications
Specifications
MAX Power Ratings
Total Max Power 760W
RMS Power Ratings
Per channel into 4 Ohms (@ 14.4V ≤ 1%THD+N, 20Hz - 20kHz for 4CH, 20Hz - 200Hz for Mono) 75W x 4 + 300W x 1
Per channel into 2 Ohms: N/A
Bridged into 4 Ohms: N/A Sound Tuning
Crossover 30Hz-400Hz, -12dB/oct. (Low-Pass/High-Pass for 4CH), 20Hz-200Hz, -24dB/oct. (Low-Pass for Mono)
EQ (Equalizer): No
Subsonic Filter: 15Hz (Fixed), -24dB/oct. for Mono Dimensions
WxHxD mm: 257mm x 62mm x 192mm General
Power Requirements: 14.4V DC (11V to 16V)
Input Sensitivity: 0.2 - 4.0V
Frequency Response: 20 - 20kHz (0, -1dB) for 4CH, 20 - 200Hz (200Hz, -3dB)
Speaker Impedance: 4 or 2 Ohms
Signal to Noise: 100dBA
